Odyssey Calibur V2 Cranks - No BB
Odyssey Calibur V2 Cranks - No BB
-
Odyssey's popular Calibur Cranks have had a ground-up redesign resulting in a massive improvement in both strength and overall durability.
The Calibur V2 Cranks are subject to Odyssey's stringent Stampy testing protocols to ensure they can withstand an absolute beating, and manufactured using the same engineering found on their legendary Thunderbolt cranks.

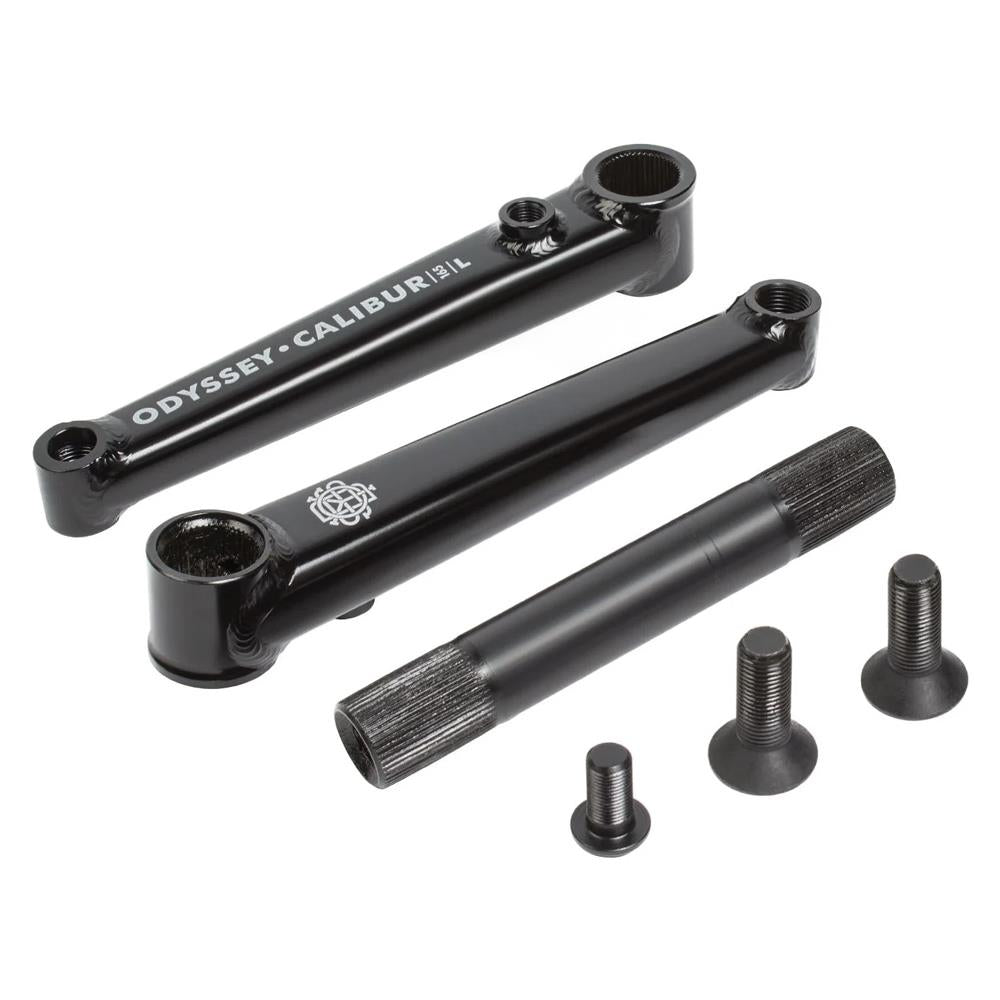

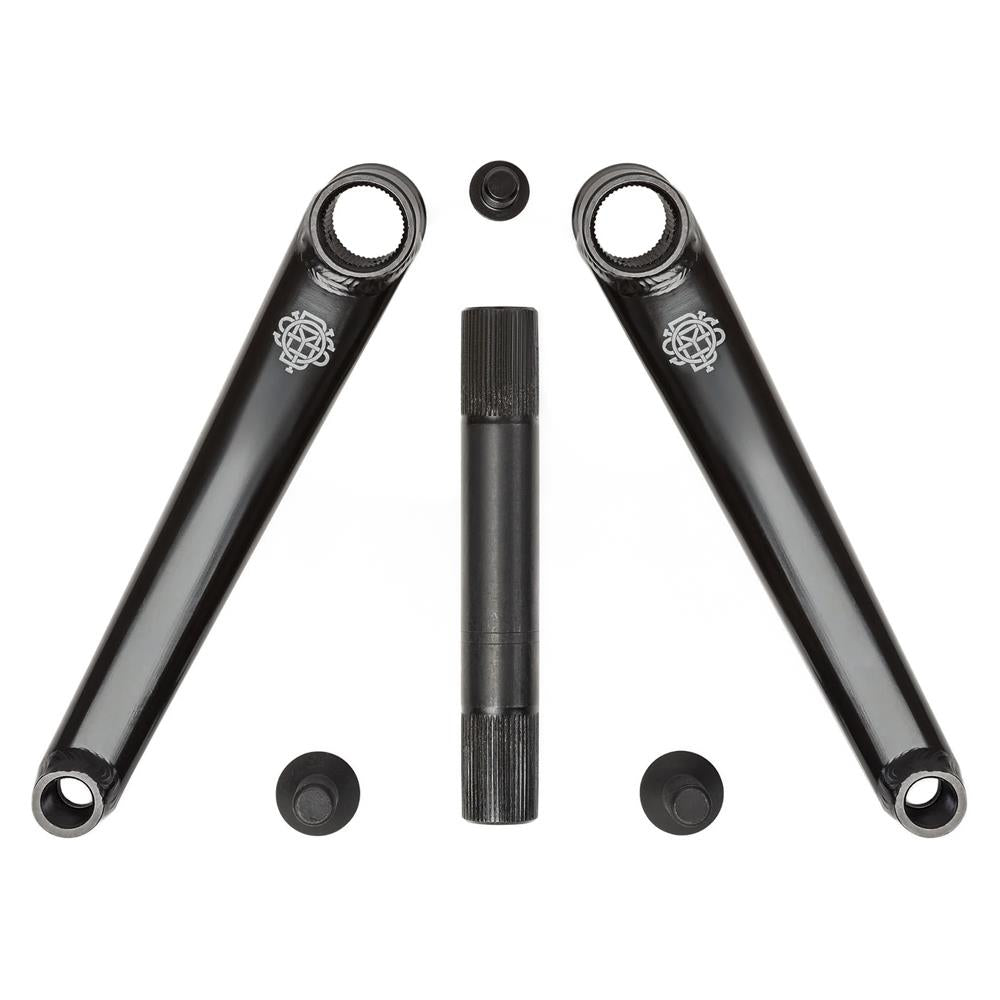

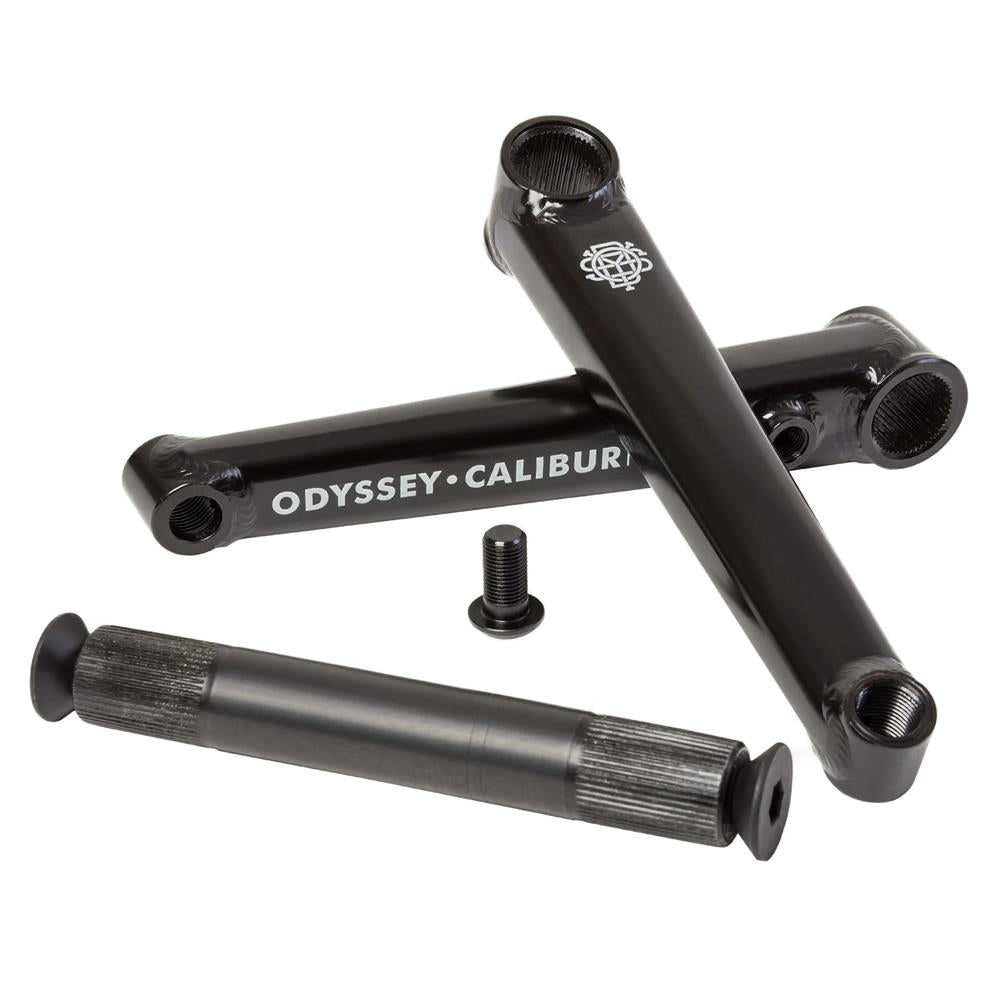

Post-weld heat-treated 4130 chromoly arms feature Thunderbolt style tubing result in incredibly strong crank arms, with a hollow 22mm, precision 48-spline, heat-treated chromoly spindle that's lightr than normal without sacrificing strength.
The Odyssey Calibur V2 Cranks are both RHD and LHD compatible.
-
Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner
-
- Free UK Shipping On Orders Over £99.99*
- Complete Tracking On All Orders
- 90 Day Returns Policy
- Free Gifts With All orders
- *Excludes bulky items
Product Specs
- Crank Type: 3-Piece
- Drive Type: Bolt Drive
- Spindle Diameter: 22mm
- Drive Side: Left & Right Compatible
- Includes BB Bearings: No
- Weight: 929g (32.8oz)
NEED SOME HELP UNDERSTANDING BMX CRANKS?
BMX cranks have plenty of options and come in many different constructions and sizes. This may be daunting at first but it's not as complicated as it may seem. Use our handy guide below to find your perfect cranks and if you still have questions just get in touch and we will be happy to help.
Click here to view all BMX Cranks
The length of the cranks arms from the spindle to the pedal. Any length will work on all bikes but there are a few things to consider; If you are purchasing a replacement crank for a child's BMX its best to measure what you are replacing and match accordingly, 10mm either way is acceptable.
99% of all freestyle BMX bikes now come with a standard Mid Bottom Bracket shell which makes frame compatibility easy. The only thing you need to get right is matching up the inner diameter of your BB with the spindle size on your crank. All our cranks have their spindle diameter listed in the specifications and you will need a BB to match - for instance, a 22mm Spindle will require a 22mm Mid BB.
All of our standard sprockets will fit our cranks as they are supplied with the relevant spacers and simply bolt to the crank arm using the spindle bolt.
RHD / LHD or drive-side refers to what side of your bike your drive chain is situated. The standard on BMX bikes is on the right but there are options to run your drivetrain on the left.
This refers to the relationship between the front sprocket and rear cog and determines how easy or hard it is to pedal. The standard gearing for full size Freestyle BMX bikes is 25t - 9t. However, there are some other popular combinations below. Obviously if you like it slighter harder to pedal, you can increase the size of the front sprocket - for example a 27t-9t.
