BSD Jonesin Frame

Regular price £349.99 Out of Stock

BSD Jonesin Frame

Check all Stock availability
Regular price £349.99 Out of Stock
Earn Source Rewards points!
Add to Wishlist
Order In For Express Shipping Options!

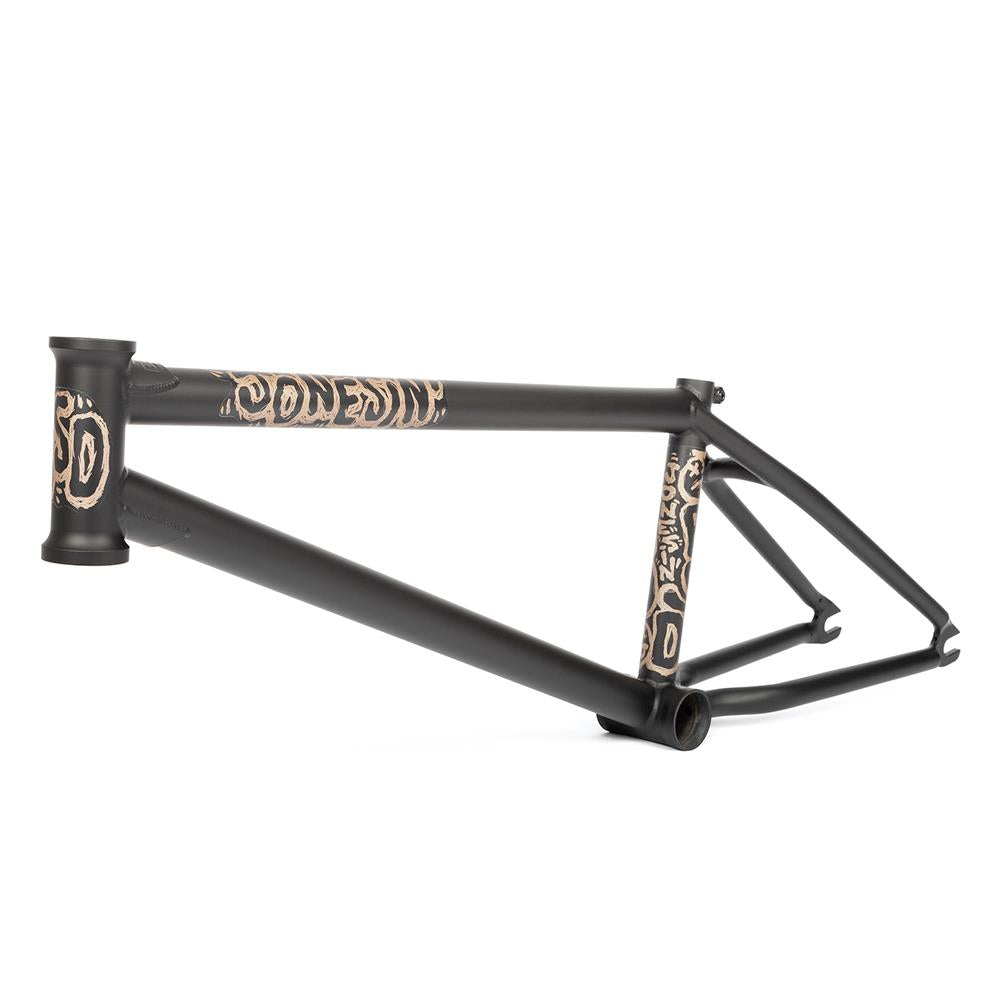

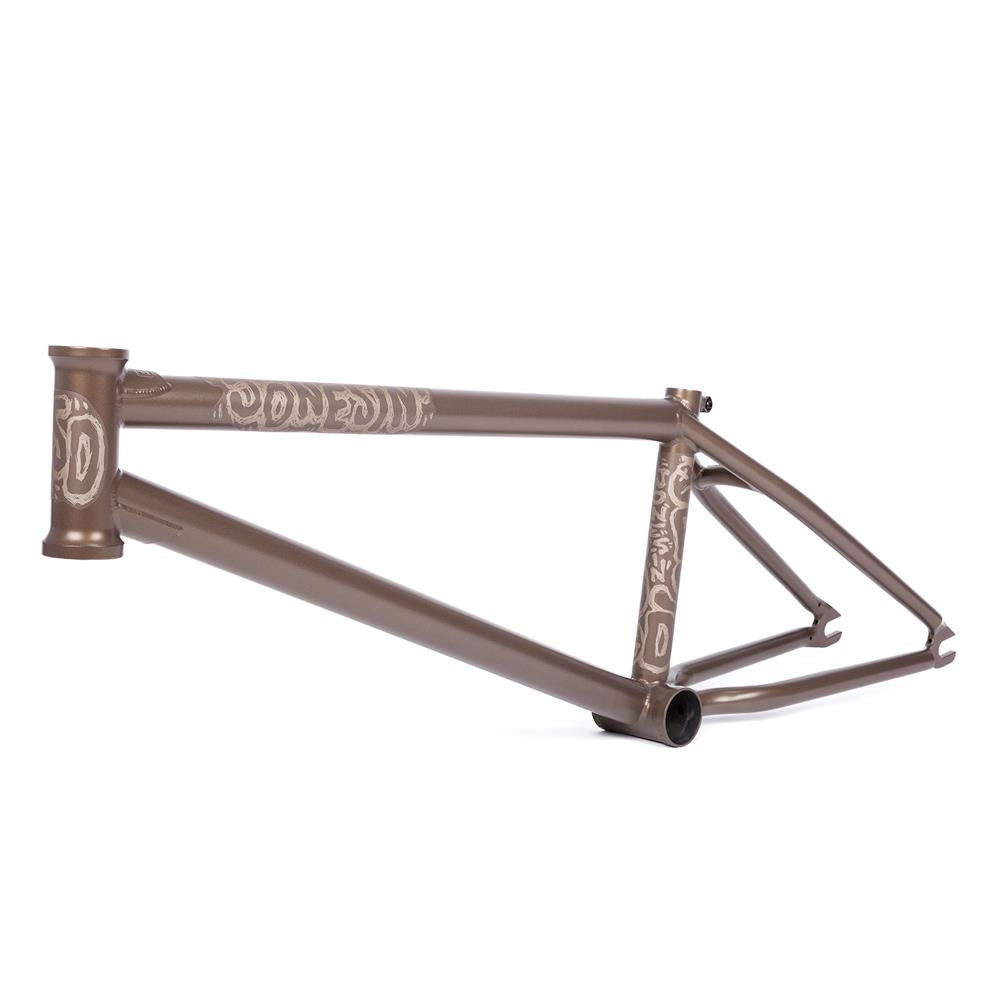

  • Introducing the Sam Jones signature Jonesin’ frame from BSD. As you may know Sam is a master of front end tricks and he designed his frame with a steep 76° head tube, short 12.7-13.2" rear end and a 8.9” standover as well as using BSD's superscoop chainstay tubing for added tyre clearance. Nozztastic!!

  • Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner

    Create price match request

    • Free Shipping On All UK Orders Over £99.99
    • Complete Tracking On All Orders
    • 90 Day Returns Policy
    • Free Gifts With All orders

Product Specs
  1. MATERIAL: 100% Chromoly
  2. HEAD TUBE ANGLE: 76°
  3. SEAT TUBE ANGLE: TBC
  4. CHAIN STAY LENGTH: 12.7-13.2"
  5. BB HEIGHT: TBC
  6. WHEEL SIZE: 20"
  7. STANDOVER HEIGHT: 8.9"
  8. DROPOUT SIZE: TBC
  9. HEADSET TYPE: Integrated
  10. BB TYPE: Mid
  11. BRAKE MOUNTS: Brakeless
  12. GYRO TABS: Brakeless
  13. WEIGHT: 5lbs

Product Highlights
  • Responsive Geometry with Short Backend and Steep Headtube
  • Best suited to Street and Park riding
  • High-quality Chromoly construction
  • Signature model frame
  • Strong S-bend chainstays with room for 2.40” tires

Free UK Shipping Over £99.99

90-Day Returns & Exchanges

Price Match Promise

Customers Rate Us Excellent!

UNDERSTANDING FRAME GEOMETRY

BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.

Keep reading to find your perfect frame, or click below to watch the buyers guide video.

FRAME SIZE CHART

Frame sizing is very much a personal preference: some riders like them longer, others shorter. Here's a rough guide - if you have any questions remember we are here to help!

3ft - 3ft 8" - best suited to a 16" BMX bike
3ft 8" - 4ft - best suited an 18" BMX bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft plus - 21" top tube or longer
Rider Height (in) Rider Height (cm) Top Tube Length
5' 152 20"
5'3" 160 20.5"
5'6" 167 20.75"
5'9" 175 21"
6' 182 21.25"
6'6" 200  21.5"

FRAME GEOMETRY

Frame geometry can take a bit of understanding - but here at SourceBMX we are here to help! The first thing to understand is that BMX frame sizing is best measured by the length of the top tube - shown here as TT. Keep reading on to understand how the angles change how your frame will feel!
