BSD Raider V3 Frame

£349.99 Out of Stock

BSD Raider V3 Frame

Check all Stock availability
£349.99 Out of Stock
Add to Wishlist
Order In For Express Shipping Options!

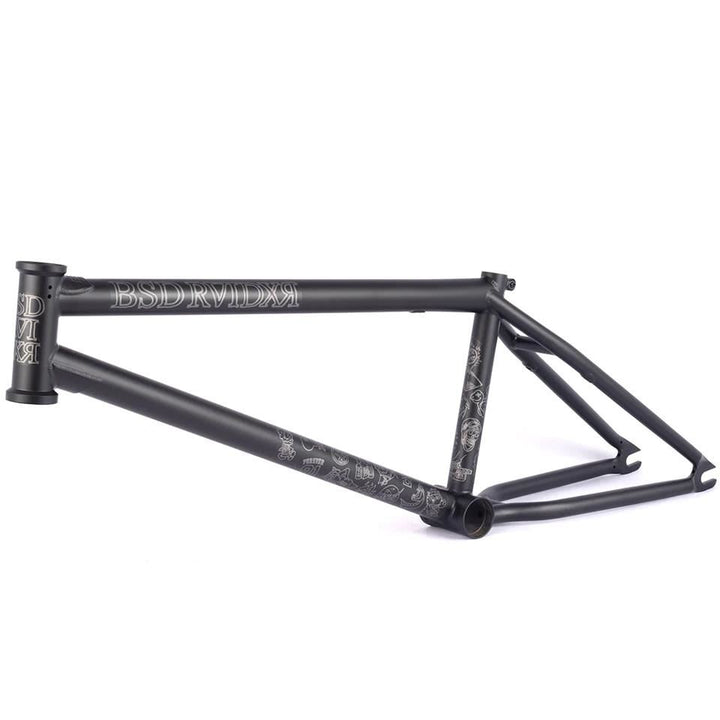

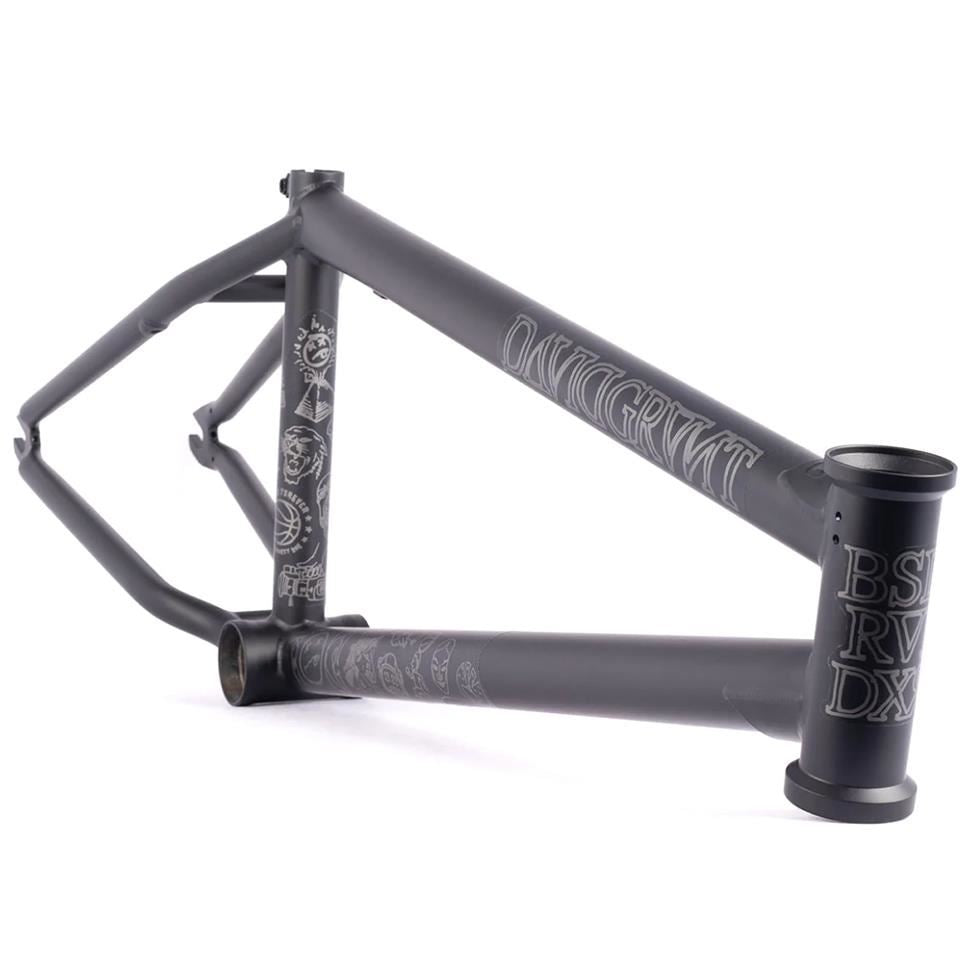

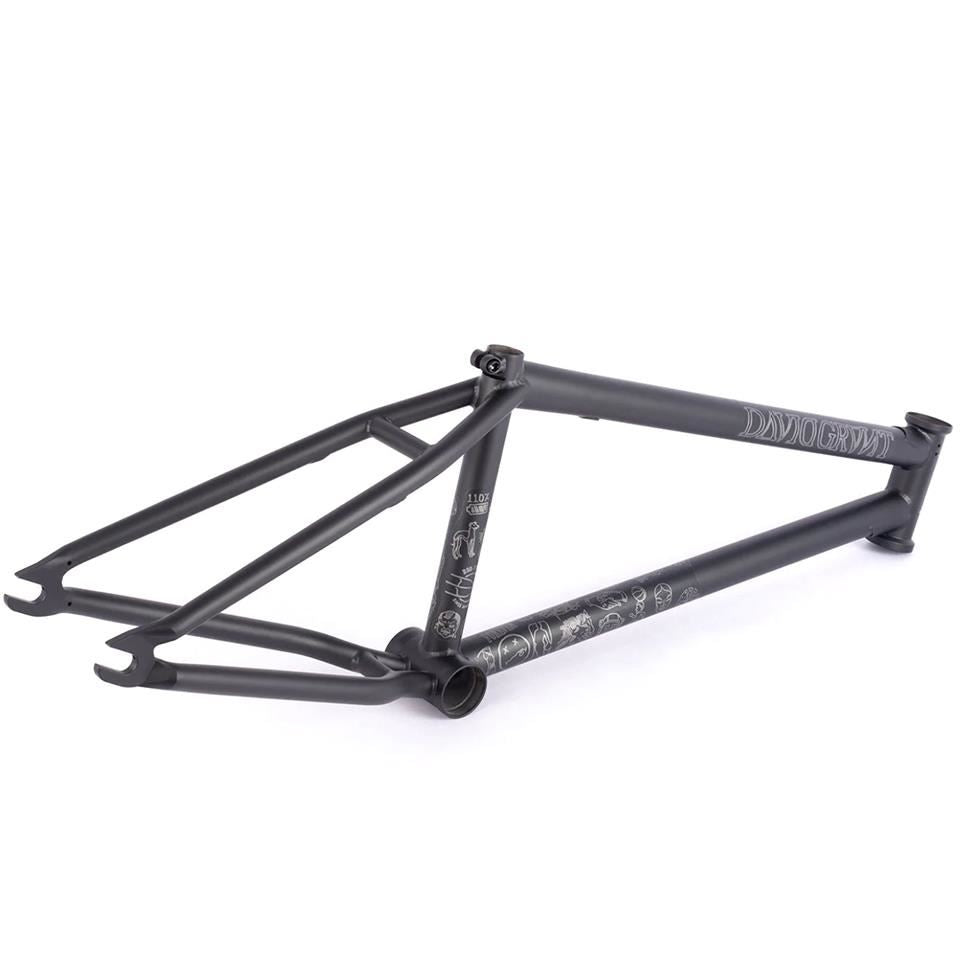

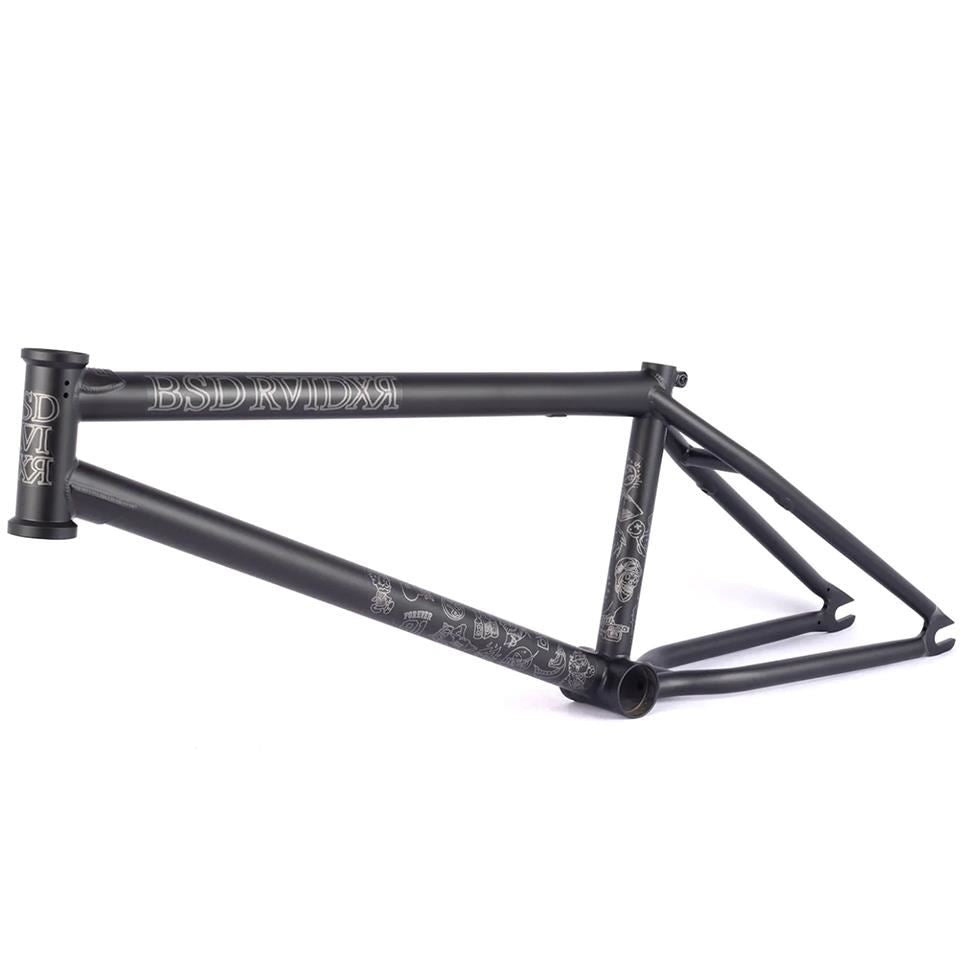

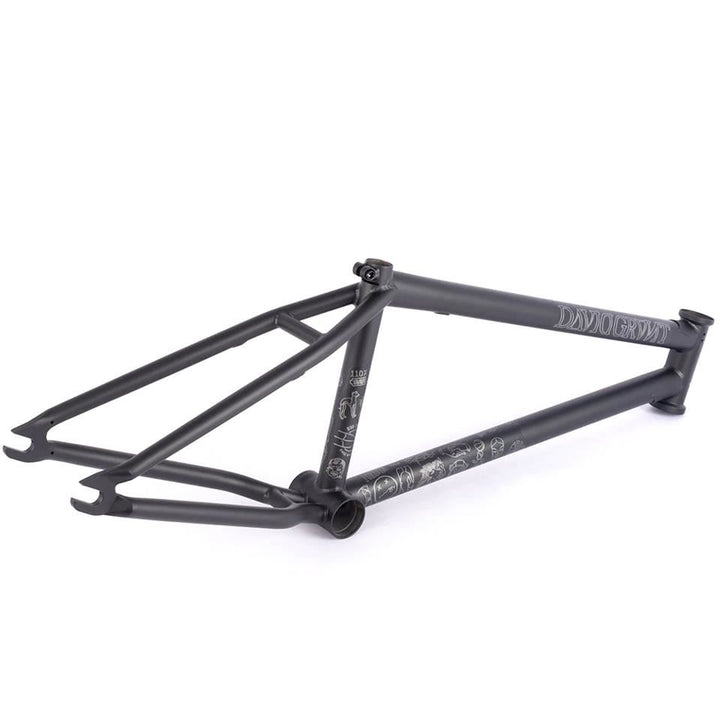

  • David Grant signature BMX Frame by BSD. This frame has been designed with the taller rider in mind or someone who just wants a bigger, taller frame for Street.

    The frame has a taller standover than most and as such feels less twitchy when riding big set ups. The frame is made entirely from the best 4130 and has a butted front end with gussets and a taller headtube to keep things where they should be. At the back this frame features small heat treated dropouts which fit pegs perfectly to eliminate hang-ups and even has built in chain tensioners to keep the wheel in place at all times. Removable brake mounts (not included), a built in seat clamp and pre-drilled for gyro tabs makes this frame ready for any type of riding style.

  • Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner

    Create price match request

    • Free Shipping On All UK Orders Over £99.99
    • Complete Tracking On All Orders
    • 90 Day Returns Policy
    • Free Gifts With All orders

Product Specs
  1. MATERIAL: Chromoly
  2. HEAD TUBE ANGLE: 75.2"
  3. SEAT TUBE ANGLE: 71°
  4. CHAIN STAY LENGTH: 13.5"
  5. BB HEIGHT: 11.75"
  6. WHEEL SIZE: 20"
  7. STANDOVER HEIGHT: 9.5"
  8. DROPOUT SIZE: 14mm
  9. HEADSET TYPE: Intergrated
  10. BB TYPE: Mid
  11. BRAKE MOUNTS: Removable (Sold separately)
  12. GYRO TABS: Removable (Sold separately)
  13. WEIGHT: 5lbs

Product Highlights
  • Neutral Geometry for responsiveness and stability
  • Best suited to Street and Park riding
  • High-quality Chromoly construction
  • Built in chain tensioners
  • Removable brake hardware (Brake hardware not included)

Free UK Shipping Over £99.99

90-Day Returns & Exchanges

Price Match Promise

Trustpilot Rate Us Excellent!

UNDERSTANDING FRAME GEOMETRY

BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.

Keep reading to find your perfect frame, or click below to watch the buyers guide video.

FRAME SIZE CHART

Frame sizing is very much a personal preference: some riders like them longer, others shorter. Here's a rough guide - if you have any questions remember we are here to help!

3ft - 3ft 8" - best suited to a 16" BMX bike
3ft 8" - 4ft - best suited an 18" BMX bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft plus - 21" top tube or longer
Rider Height (in) Rider Height (cm) Top Tube Length
5' 152 20"
5'3" 160 20.5"
5'6" 167 20.75"
5'9" 175 21"
6' 182 21.25"
6'6" 200  21.5"

FRAME GEOMETRY

Frame geometry can take a bit of understanding - but here at SourceBMX we are here to help! The first thing to understand is that BMX frame sizing is best measured by the length of the top tube - shown here as TT. Keep reading on to understand how the angles change how your frame will feel!
