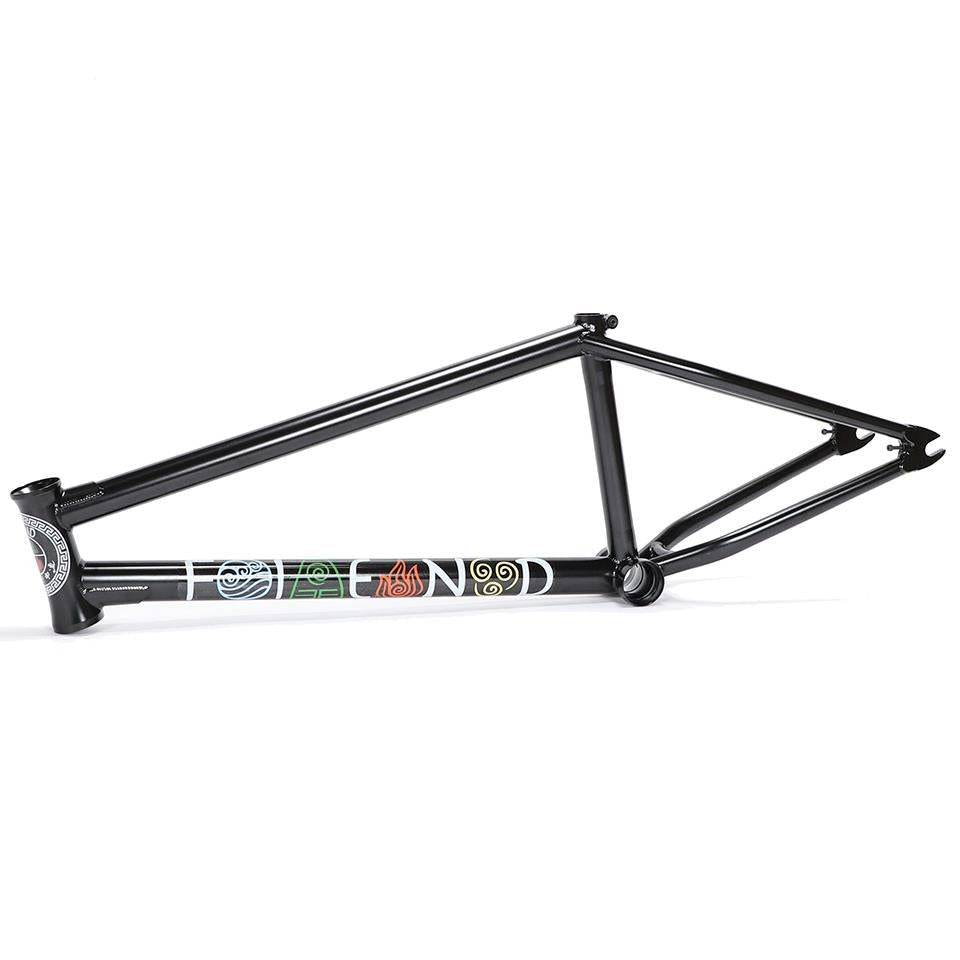

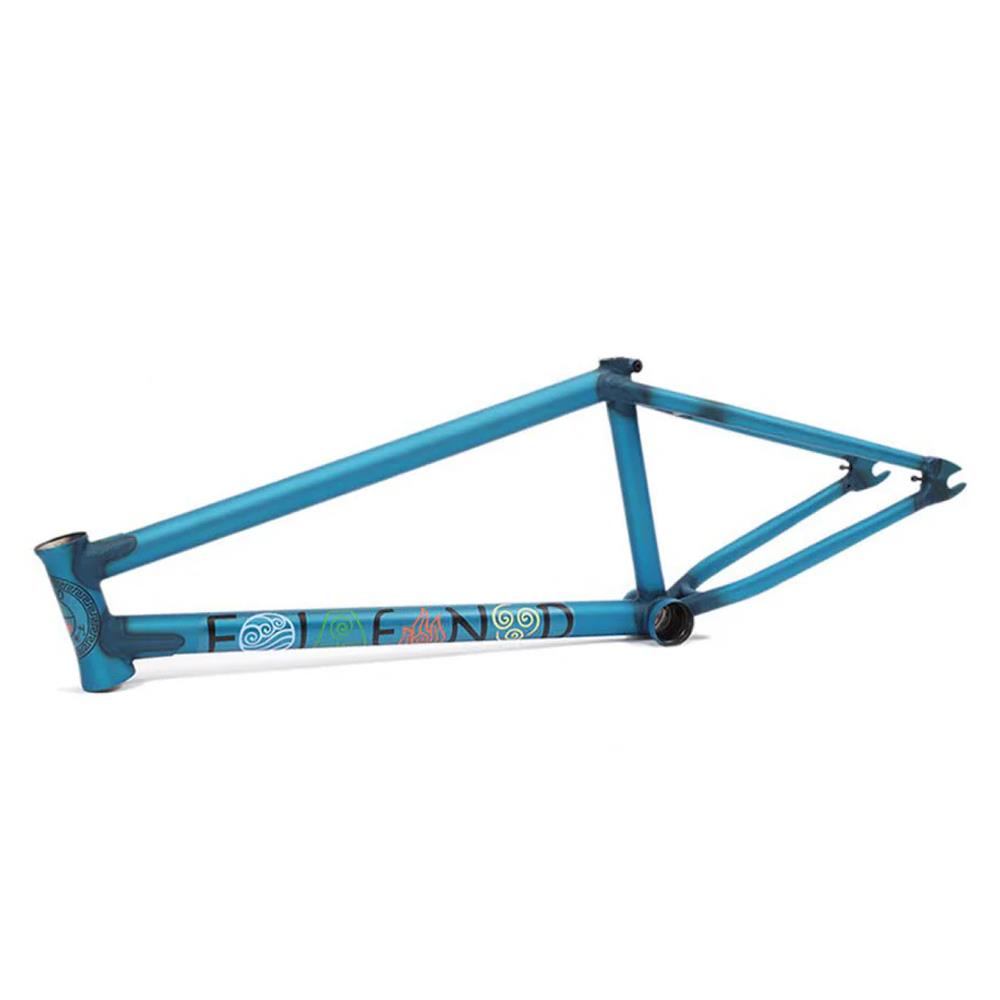

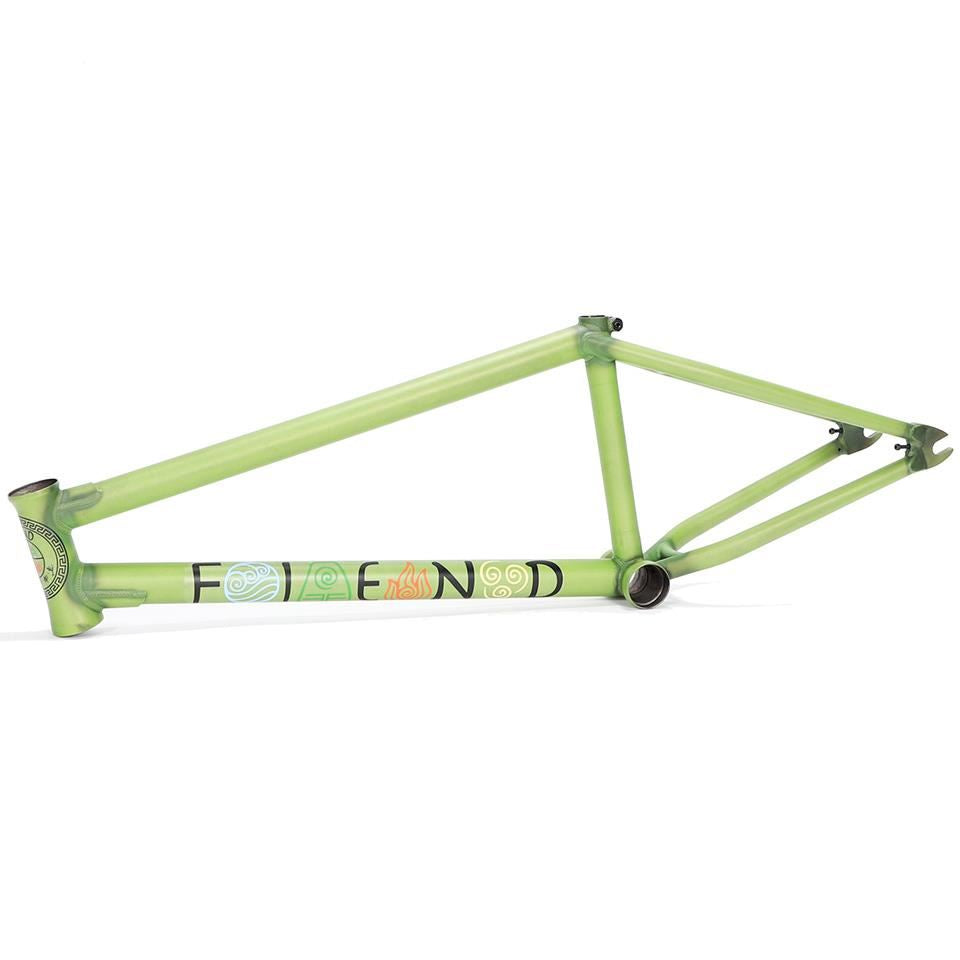

Fiend Raekes Frame

Regular price £364.99 £255.49 In Stock

Fiend Raekes Frame

Check all Stock availability
Regular price £364.99 £255.49 In Stock
Earn Source Rewards points!
Add to Wishlist
Order In For Express Shipping Options!
Pay securely, your way
Designed with responsive, creative and technical street riding in mind. Johnny Raekes thinks outside the box and this frame is frame with help make anything you can imagine a reality.
  • Designed by Johnny Raekes and constructed with 4130 chromoly throughout. Features include heat-treated Mid bottom bracket shell and integrated 5" head tube(tapped for detangler tabs), double-butted top, ovalized down tube with external head tube gussets, externally gusseted seat tube with integrated post clamp, ovalized chain stays, tapered seat stays with Flush Mount brake lugs and 8mm thick investment cast dropouts with integrated chain tensioners. Brake mounts and hardware sold separately. Due to the nature of semi-transparent paint finishes the character of the raw tubing will be visible and may contain vein-like abnormalities making each frame unique.

  • Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner

    Create price match request

    • Free UK Shipping On Orders Over £99.99*
    • Complete Tracking On All Orders
    • 90 Day Returns Policy
    • Free Gifts With All orders
    • *Excludes bulky items

Product Specs
  1. MATERIAL: 4130 Chromoly
  2. HEAD TUBE ANGLE: 75.5°
  3. SEAT TUBE ANGLE: 71°
  4. CHAIN STAY LENGTH: 12.9"
  5. BB HEIGHT: 11.6"
  6. WHEEL SIZE: 20"
  7. STANDOVER HEIGHT: 9.5"
  8. DROPOUT SIZE: 14mm
  9. HEADSET TYPE: Integrated
  10. BB TYPE: Mid
  11. BRAKE MOUNTS: Removable
  12. GYRO TABS: Pre-tapped
  13. WEIGHT: 5.2lbs

Product Highlights
  • Responsive Geometry with Short Backend and Steep Headtube
  • Best suited to Street and Park riding
  • High-quality Chromoly construction
  • Strong and durable investment cast dropouts
  • Gusseted tubing for added strength

Free UK Shipping Over £99.99*

90-Day Returns & Exchanges

Price Match Promise

Customers Rate Us Excellent!

UNDERSTANDING FRAME GEOMETRY

BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.

Keep reading to find your perfect frame, or click below to watch the buyers guide video.

FRAME SIZE CHART

Frame sizing is very much a personal preference: some riders like them longer, others shorter. Here's a rough guide - if you have any questions remember we are here to help!

3ft - 3ft 8" - best suited to a 16" BMX bike
3ft 8" - 4ft - best suited an 18" BMX bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft plus - 21" top tube or longer
Rider Height (in) Rider Height (cm) Top Tube Length
5' 152 20"
5'3" 160 20.5"
5'6" 167 20.75"
5'9" 175 21"
6' 182 21.25"
6'6" 200  21.5"

FRAME GEOMETRY

Frame geometry can take a bit of understanding - but here at SourceBMX we are here to help! The first thing to understand is that BMX frame sizing is best measured by the length of the top tube - shown here as TT. Keep reading on to understand how the angles change how your frame will feel!
