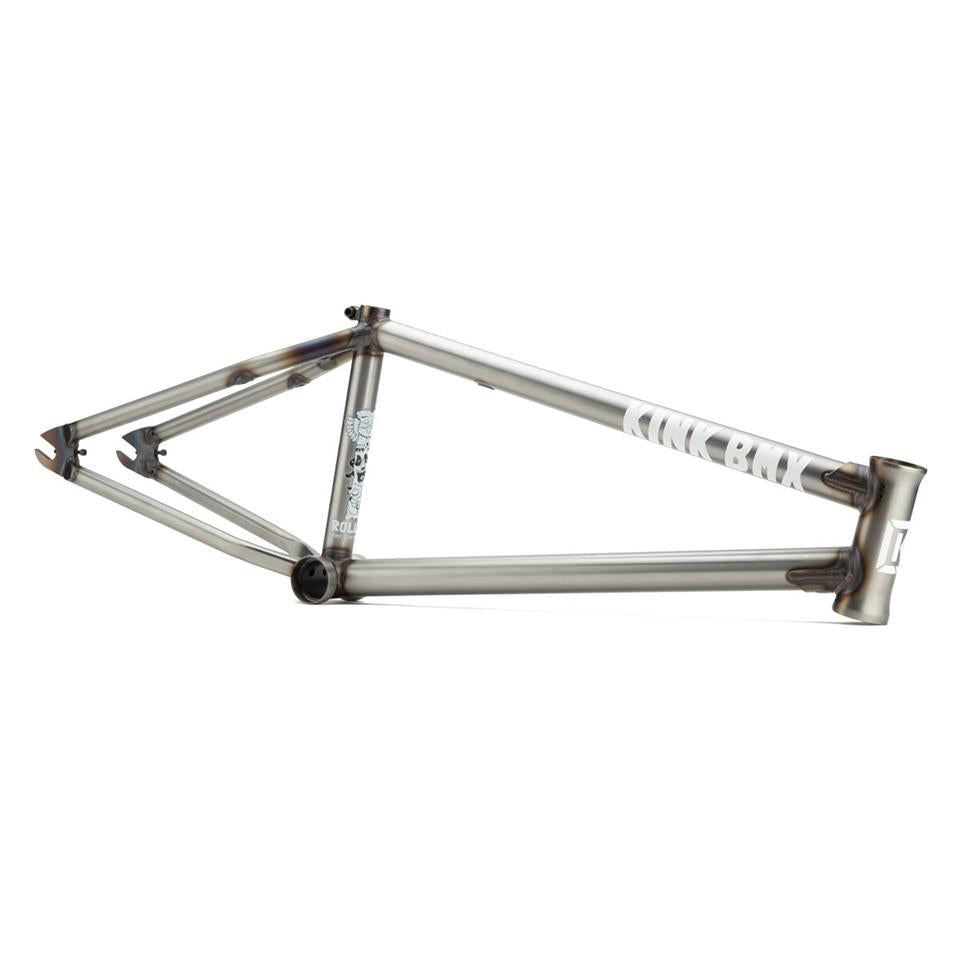

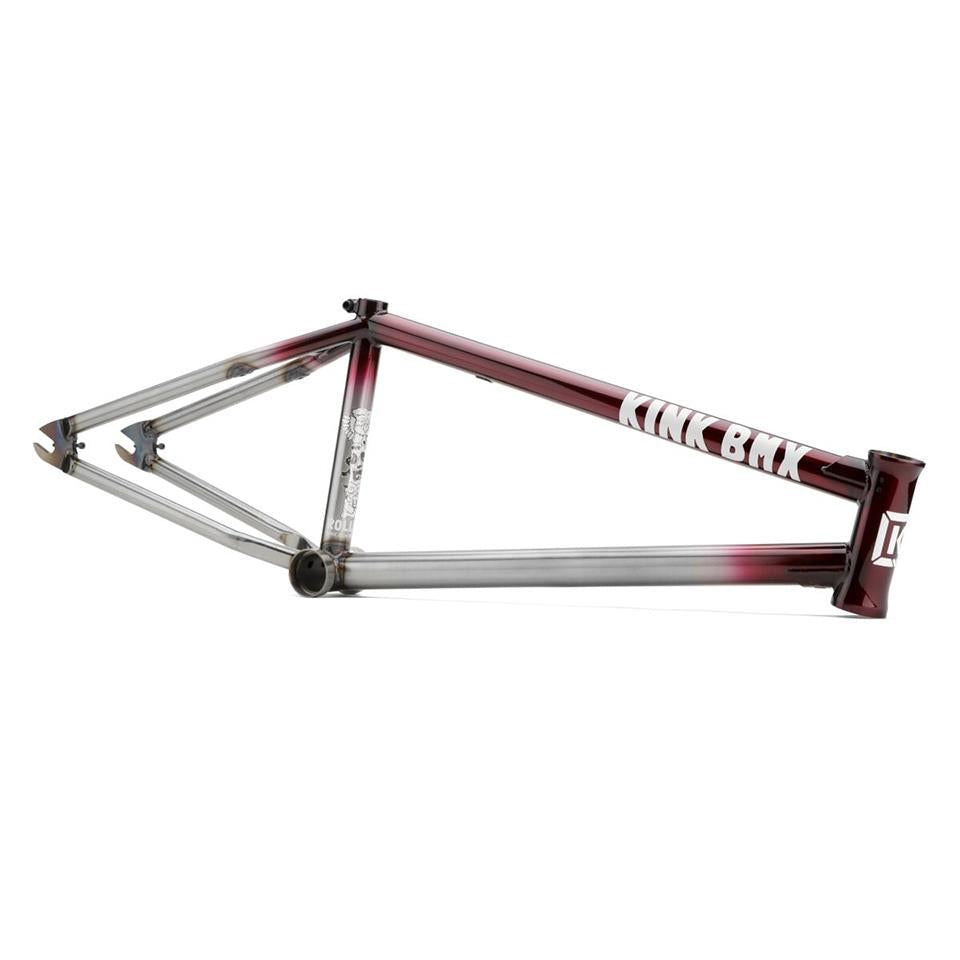

Kink Roll Up Frame

Regular price £349.99 Out of Stock

Kink Roll Up Frame

Check all Stock availability
Regular price £349.99 Out of Stock
Earn Source Rewards points!
Add to Wishlist
Order In For Express Shipping Options!
Pay securely, your way
  • Kink worked closely with Hobie Doan on his signature Roll Up frame to give him all the specs and features he was looking for in a super tough frame. The investment cast chainstay yoke creates a clean look, while providing extra stiffness and a ton of tyre clearance. For the seatstay bridge the frame features an oversized laser cut bridge for more stiffness and a great look. Modern street geometry throughout the frame of course, with a 75° headtube angle and 12.75” chainstay length. The dropouts feature a revised shape based on Hobie’s input and feature integrated chain tensioners to ensure your wheel stays in place and chain stays tight. This frame includes removable brake mount hardware and an integrated seat post clamp with a handy 5mm/6mm combo bolt.

  • Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner

    Create price match request

    • Free UK Shipping On Orders Over £99.99*
    • Complete Tracking On All Orders
    • 90 Day Returns Policy
    • Free Gifts With All orders
    • *Excludes bulky items

Product Specs
  1. MATERIAL: Chromoly
  2. HEAD TUBE ANGLE: 75°
  3. SEAT TUBE ANGLE: 71°
  4. CHAIN STAY LENGTH: 12.75"
  5. BB HEIGHT: 11.75"
  6. WHEEL SIZE: 20"
  7. STANDOVER HEIGHT: 9.25"
  8. DROPOUT SIZE: 14mm
  9. HEADSET TYPE: Intergrated
  10. BB TYPE: Mid
  11. BRAKE MOUNTS: Removable (Included)
  12. GYRO TABS: None
  13. WEIGHT: 5lbs

Product Highlights
  • Responsive Geometry with Short Backend and Steep Headtube
  • Best suited to Street and Park riding
  • High-quality Chromoly construction
  • Strong and durable investment cast chainstay yoke
  • Built in chain tensioners

Free UK Shipping Over £99.99*

90-Day Returns & Exchanges

Price Match Promise

Customers Rate Us Excellent!

UNDERSTANDING FRAME GEOMETRY

BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.

Keep reading to find your perfect frame, or click below to watch the buyers guide video.

FRAME SIZE CHART

Frame sizing is very much a personal preference: some riders like them longer, others shorter. Here's a rough guide - if you have any questions remember we are here to help!

3ft - 3ft 8" - best suited to a 16" BMX bike
3ft 8" - 4ft - best suited an 18" BMX bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft plus - 21" top tube or longer
Rider Height (in) Rider Height (cm) Top Tube Length
5' 152 20"
5'3" 160 20.5"
5'6" 167 20.75"
5'9" 175 21"
6' 182 21.25"
6'6" 200  21.5"

FRAME GEOMETRY

Frame geometry can take a bit of understanding - but here at SourceBMX we are here to help! The first thing to understand is that BMX frame sizing is best measured by the length of the top tube - shown here as TT. Keep reading on to understand how the angles change how your frame will feel!
