S&M Hoder BTM Frame
S&M Hoder BTM Frame
-

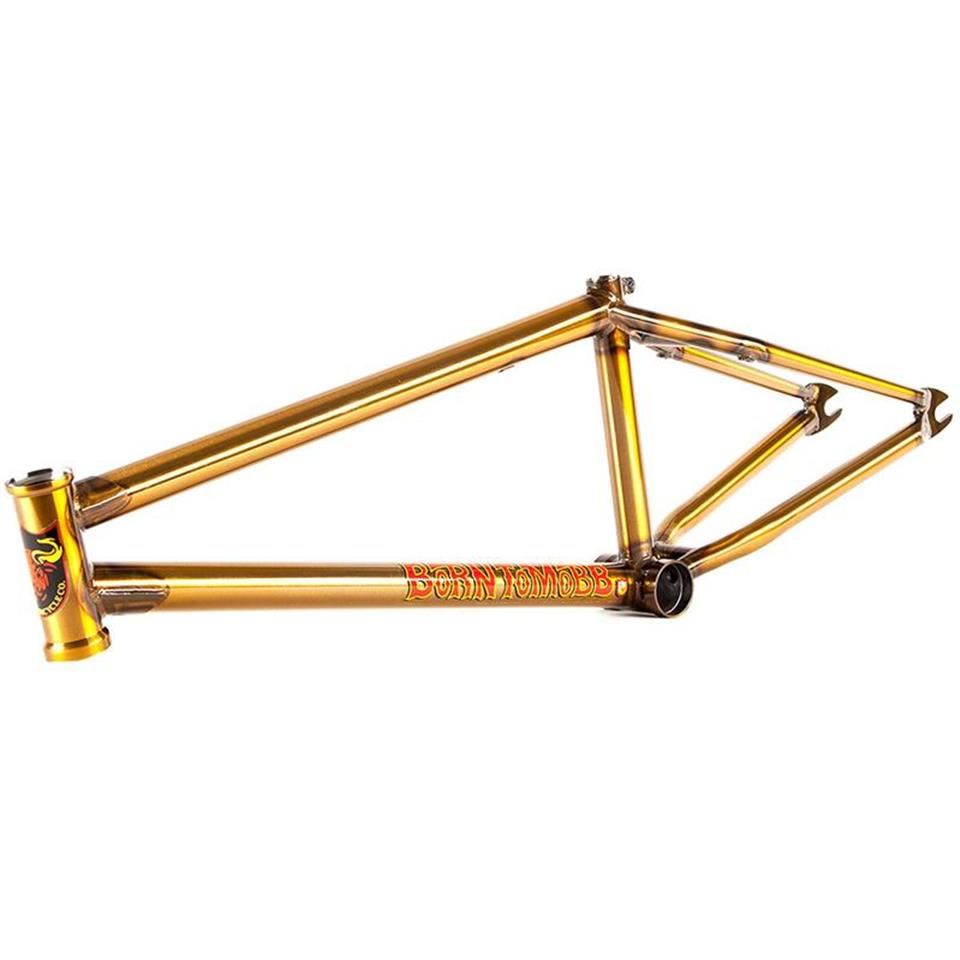

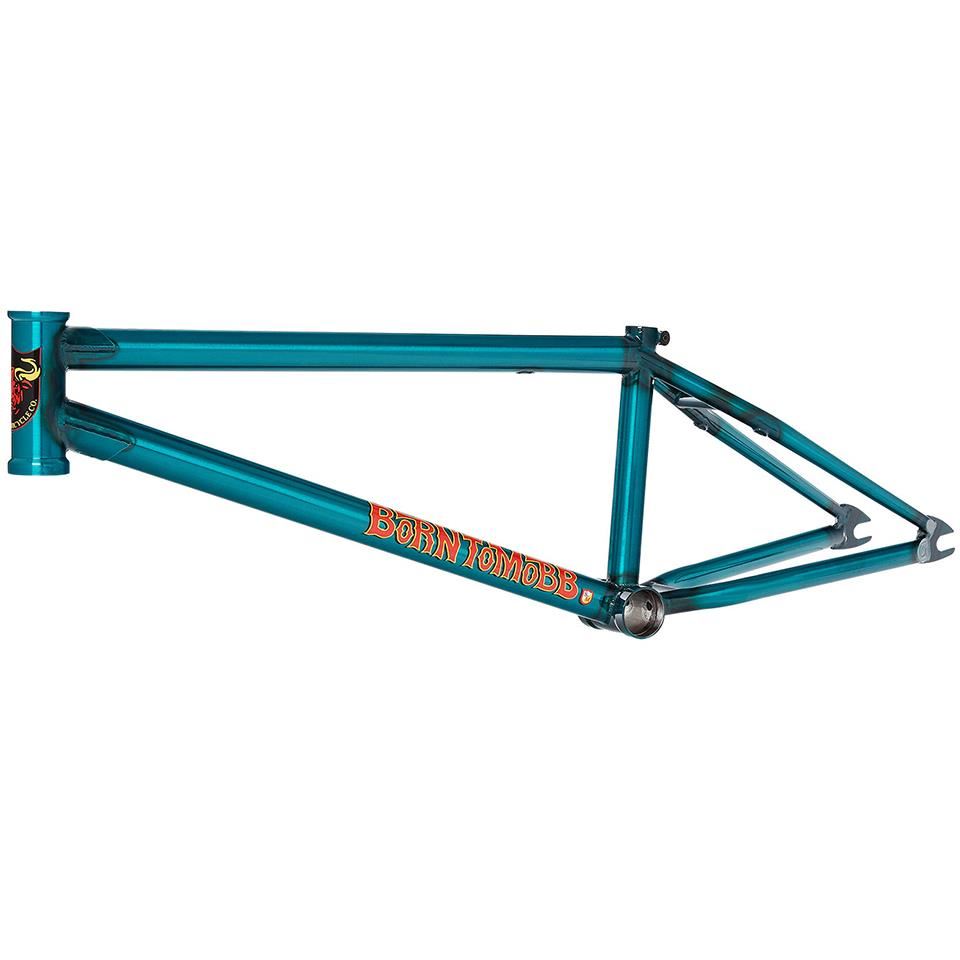

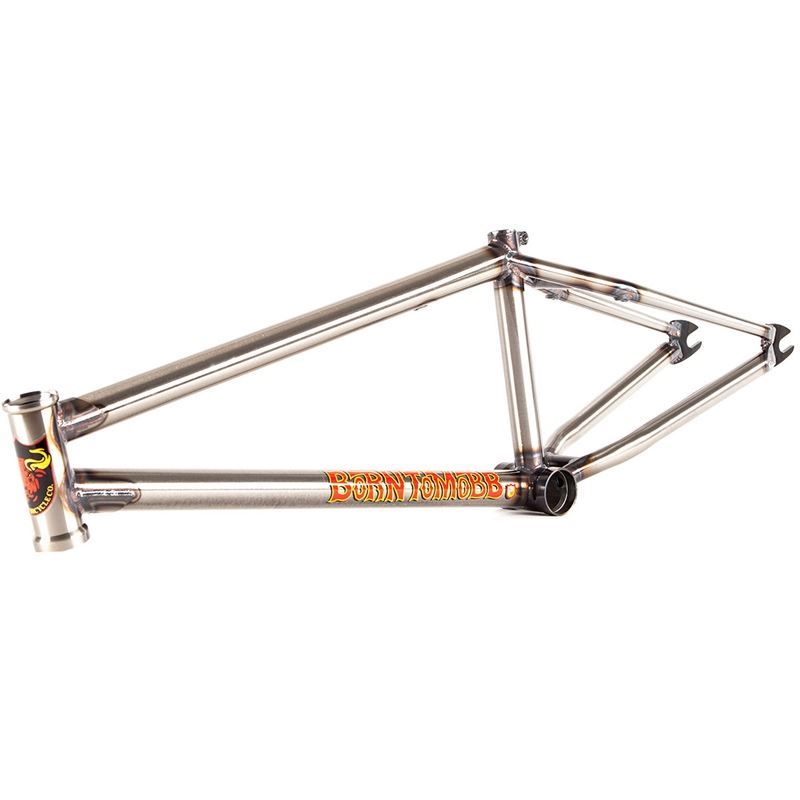

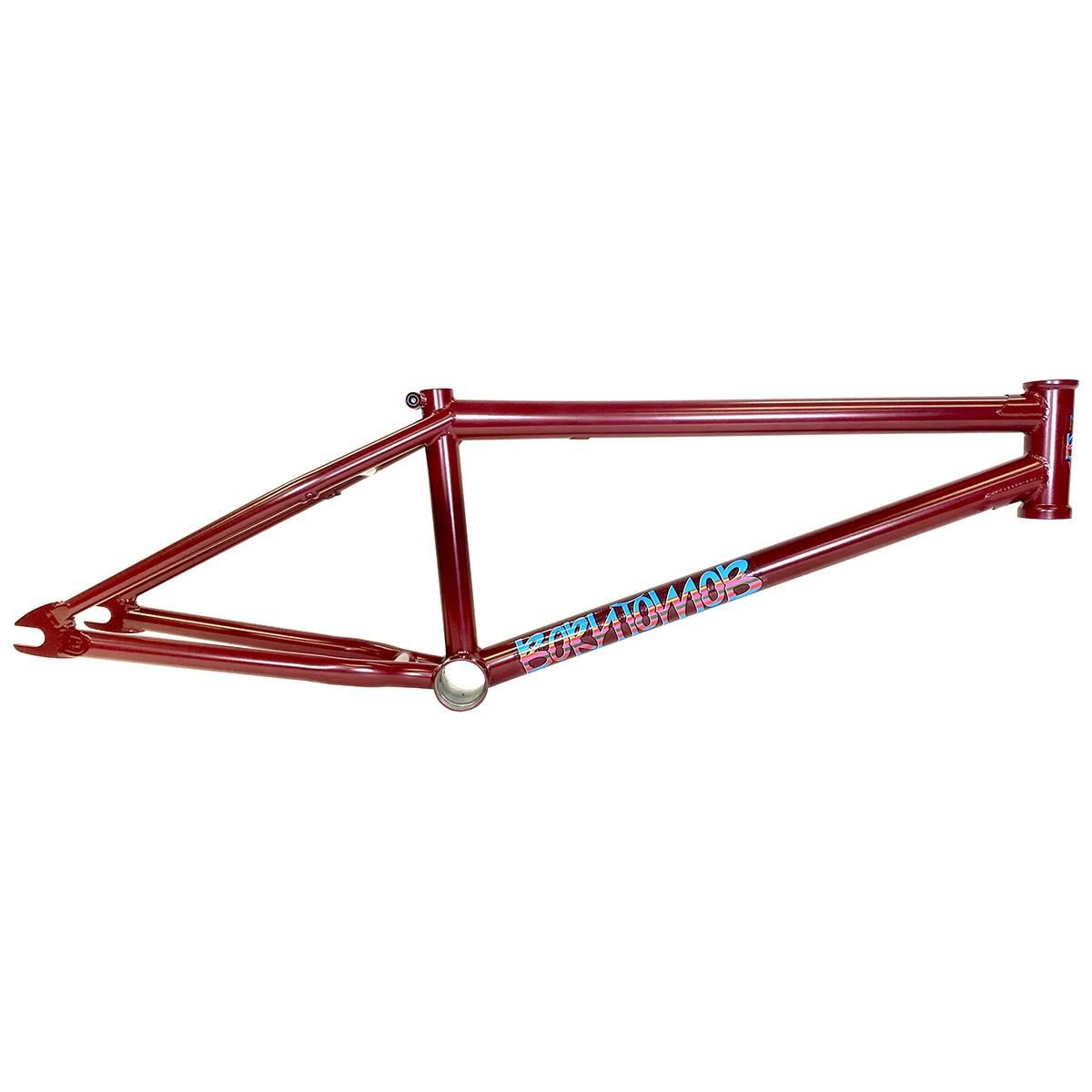

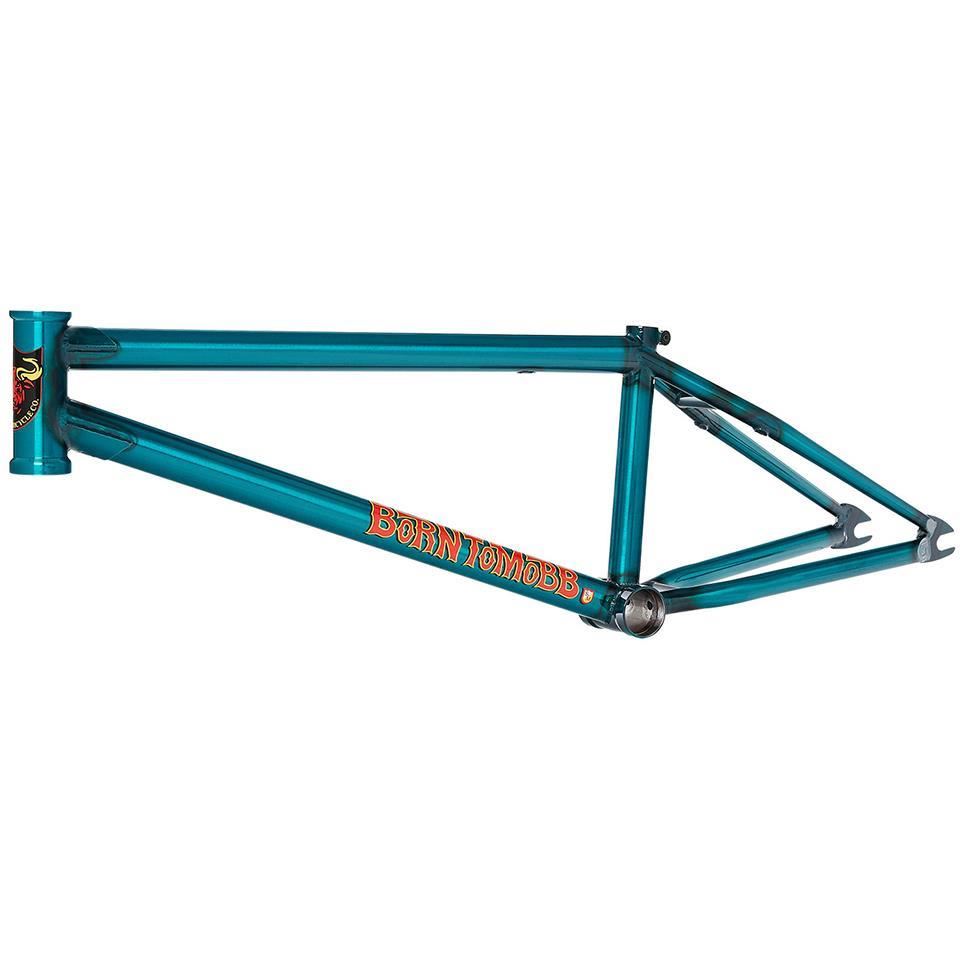

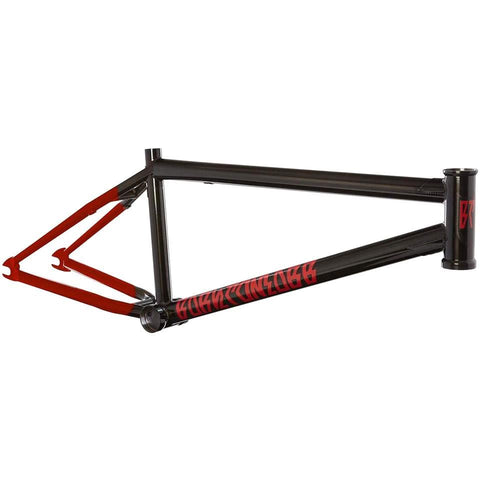

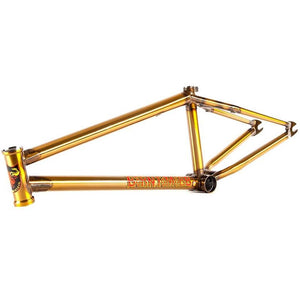

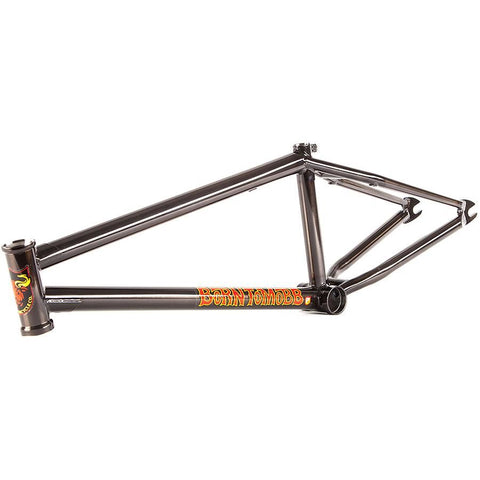

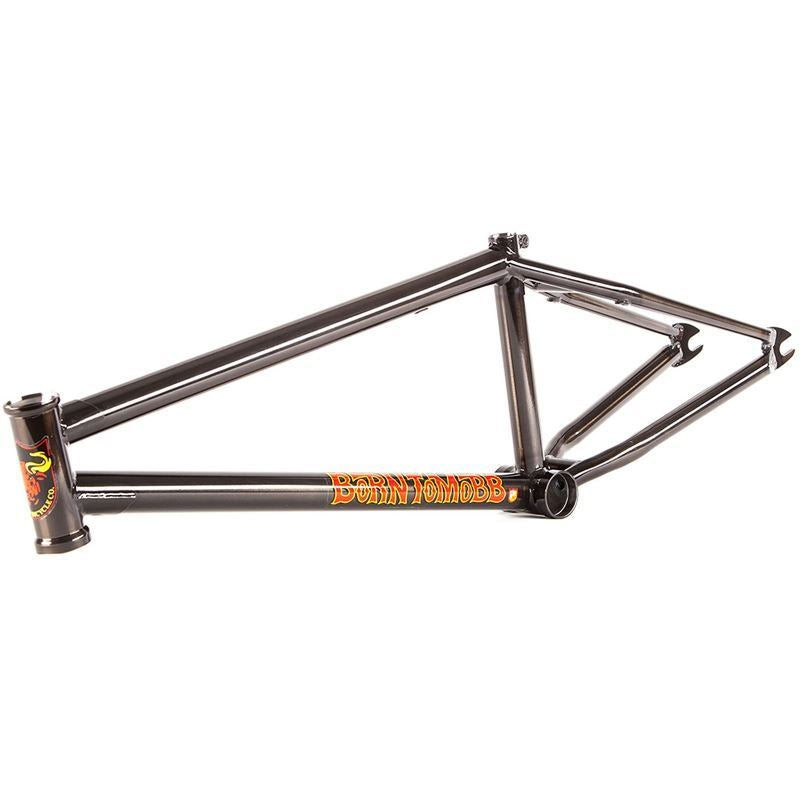

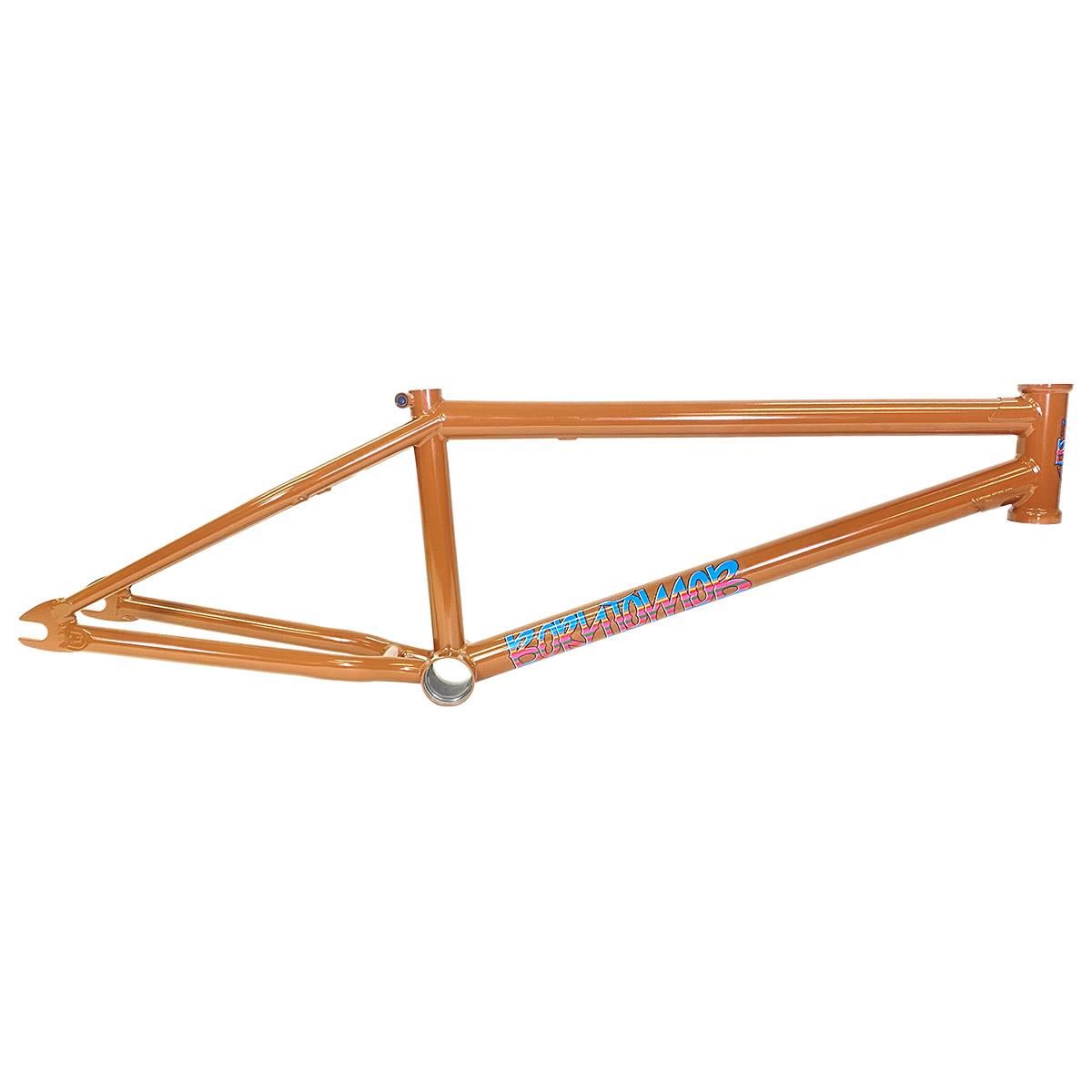

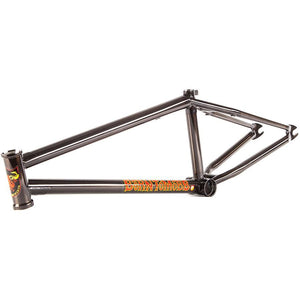

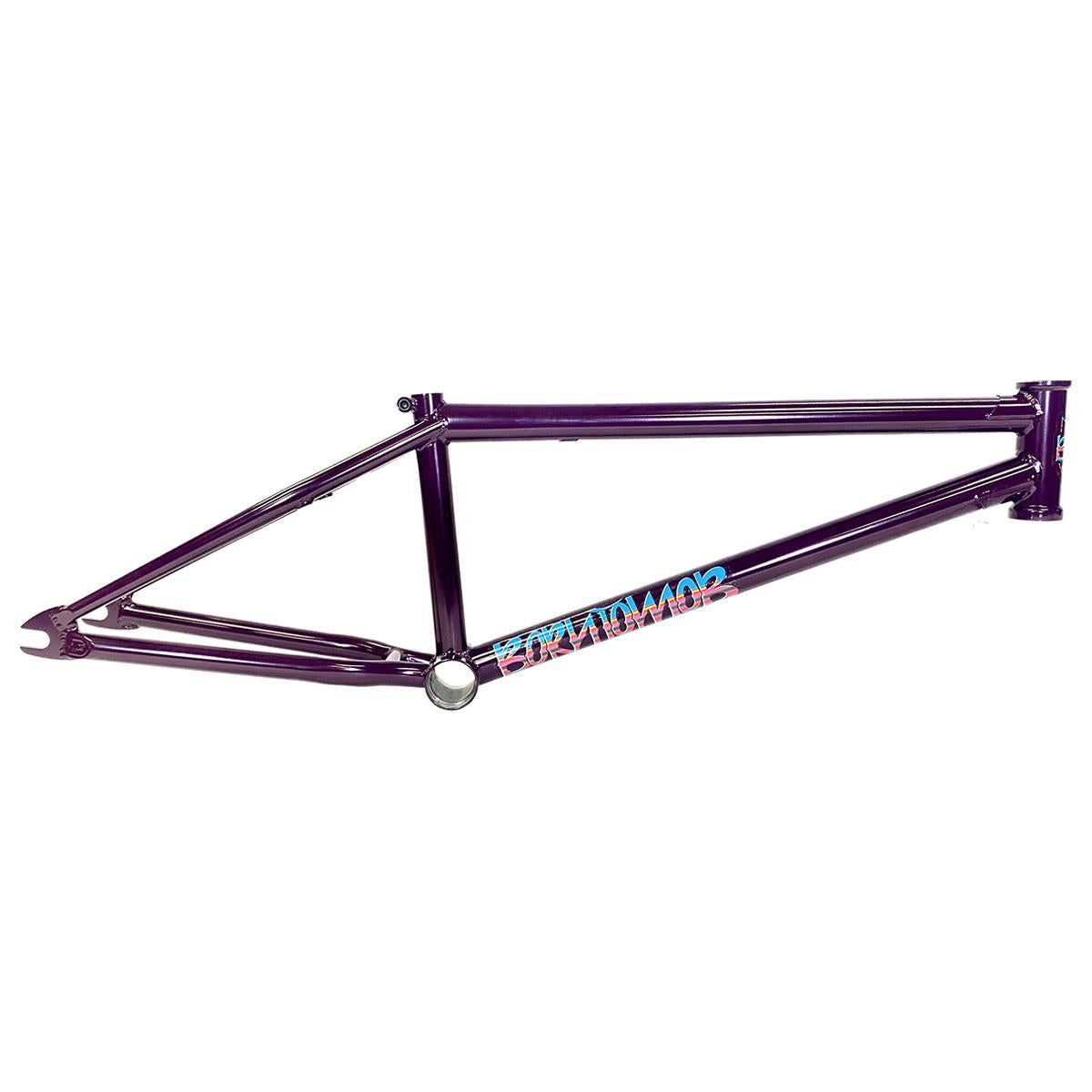

The Born to Mob or BTM frame is Mike Hoders signature frame from S&M. The BTM Frame is designed more for the street ride and features a short back end, low BB height and butted true temper super therm tubing for great strength but still only weighing in at 4.6lbs.
The BTM also has an integrated headset, top and downtube open end gussets for extra strength, externally machined Mid BB shell, an integrated seat post clamp, strong tapered seatstays with bosses for removable brake mounts (sold separately), 7/8" diameter chainstays, tubular stay braces with a super cool BTM engraving, and 5mm thick 4Q-Baked dropouts. -
Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner
-
- Free UK Shipping On Orders Over £99.99*
- Complete Tracking On All Orders
- 90 Day Returns Policy
- Free Gifts With All orders
- *Excludes bulky items
Product Specs
- MATERIAL: Full 4130 Chromoly
- HEAD TUBE ANGLE: 75°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 13.125"
- BB HEIGHT: 11.5"
- WHEEL SIZE: 20"
- STANDOVER HEIGHT: 8.75"
- DROPOUT SIZE: 14mm
- HEADSET TYPE: Integrated
- BB TYPE: Mid
- BRAKE MOUNTS: Removable
- GYRO TABS: None
- WEIGHT: 4.6lbs
Product Highlights
- Neutral Geometry for responsiveness and stability
- Best suited to Street and Park riding
- High-quality Chromoly construction
- Strong butted tubing
- Made in the USA
UNDERSTANDING FRAME GEOMETRY
BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.
Keep reading to find your perfect frame, or click below to watch the buyers guide video.
FRAME SIZE CHART
Frame sizing is very much a personal preference: some riders like them longer, others shorter. Here's a rough guide - if you have any questions remember we are here to help!3ft - 3ft 8" - best suited to a 16" BMX bike
3ft 8" - 4ft - best suited an 18" BMX bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft plus - 21" top tube or longer
Rider Height (in) | Rider Height (cm) | Top Tube Length |
---|---|---|
5' | 152 | 20" |
5'3" | 160 | 20.5" |
5'6" | 167 | 20.75" |
5'9" | 175 | 21" |
6' | 182 | 21.25" |
6'6" | 200 | 21.5" |
