Volume Voyager XL Frame

Regular price £419.99 £199.99 Out of Stock

Volume Voyager XL Frame

Check all Stock availability
Regular price £419.99 £199.99 Out of Stock
Add to Wishlist
Order In For Express Shipping Options!

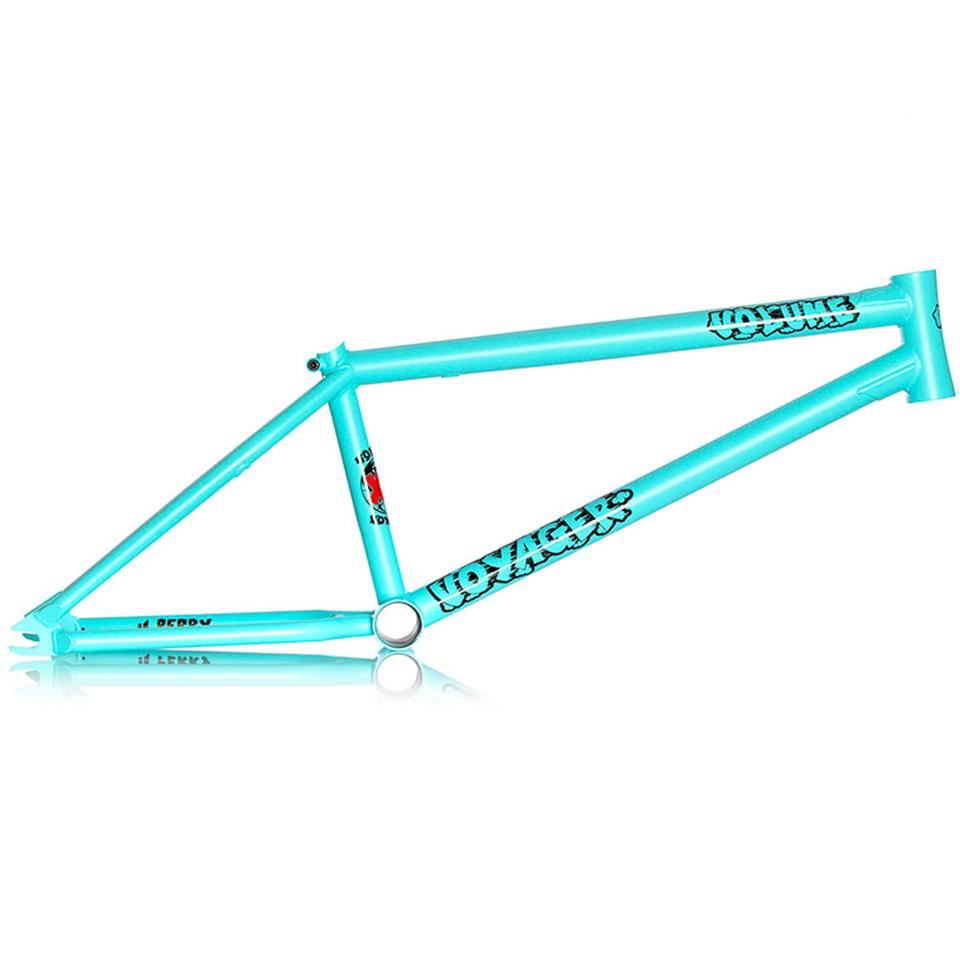

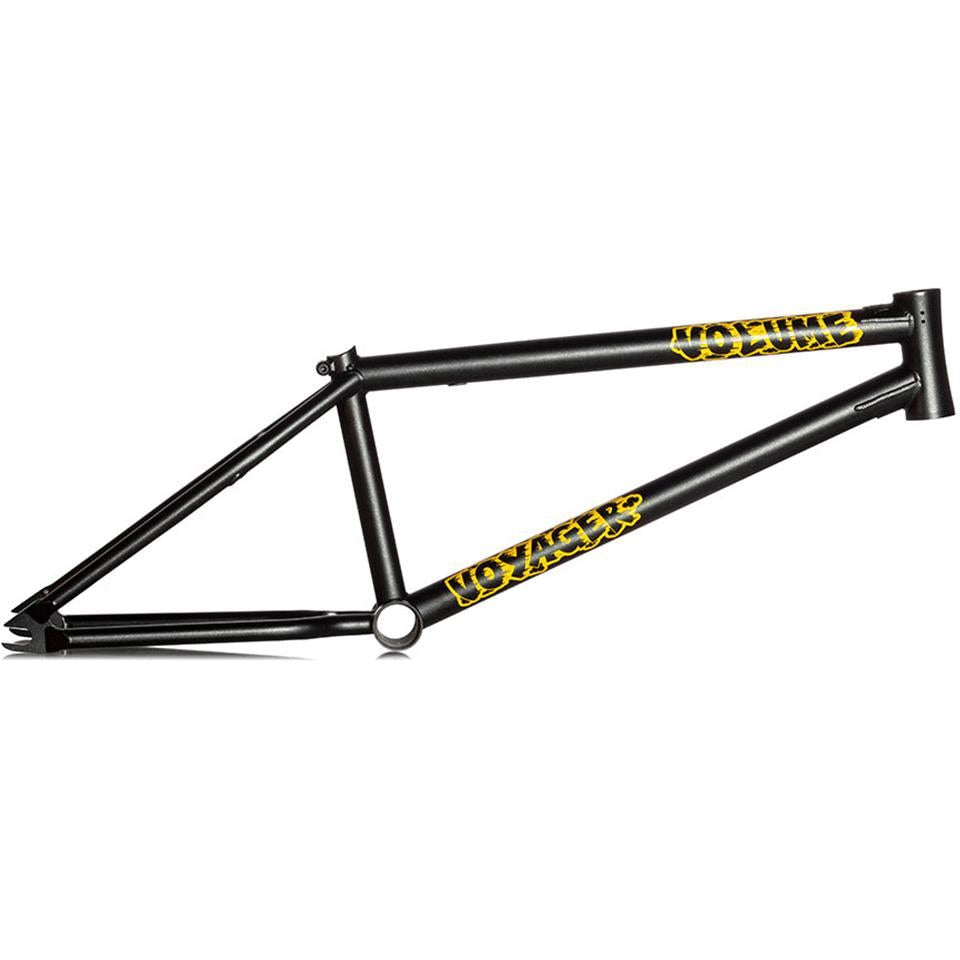

  • The Voyager XL frame features the same tech feel of the Voyager V2, but with a little extra length. It has a steeper 75.25° heat tube, Longer 13” slammed chainstay (13.25” center to center) and a higher 9.25” seat tube height. This frame also features double butted 4130 heat treated chromoly tubing, hour glass head tube, and small/clean 6mm thick laser cut and welded dropouts with built in chain tensioner. Added top and bottom gussets for strength, removable brake mounts, and S chainstays for bigger tyre clearance.

  • Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner

    Create price match request

    • Free Shipping On All UK Orders Over £99.99
    • Complete Tracking On All Orders
    • 90 Day Returns Policy
    • Free Gifts With All orders

Product Specs
  1. MATERIAL: 100% 4130 CrMo
  2. HEAD TUBE ANGLE: 75.25°
  3. SEAT TUBE ANGLE: 71°
  4. CHAIN STAY LENGTH: 13.25"
  5. BB HEIGHT: 11.7"
  6. WHEEL SIZE: 20"
  7. STANDOVER HEIGHT: 9.25"
  8. DROPOUT SIZE: 14mm
  9. HEADSET TYPE: Intergrated
  10. BB TYPE: Mid
  11. BRAKE MOUNTS: Removable (Sold separately)
  12. GYRO TABS: Removable (Sold separately)
  13. WEIGHT: 5.4 lbs

Product Highlights
  • Responsive Geometry with Short Backend and Steep Headtube
  • Great all round frame for all types of riding
  • High-quality Chromoly construction
  • Strong S-bend chainstays with room for 2.40” tires
  • Strong and durable investment cast dropouts

Free UK Shipping Over £99.99

90-Day Returns & Exchanges

Price Match Promise

Trustpilot Rate Us Excellent!

UNDERSTANDING FRAME GEOMETRY

BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.

Keep reading to find your perfect frame, or click below to watch the buyers guide video.

FRAME SIZE CHART

Frame sizing is very much a personal preference: some riders like them longer, others shorter. Here's a rough guide - if you have any questions remember we are here to help!

3ft - 3ft 8" - best suited to a 16" BMX bike
3ft 8" - 4ft - best suited an 18" BMX bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft plus - 21" top tube or longer
Rider Height (in) Rider Height (cm) Top Tube Length
5' 152 20"
5'3" 160 20.5"
5'6" 167 20.75"
5'9" 175 21"
6' 182 21.25"
6'6" 200  21.5"

FRAME GEOMETRY

Frame geometry can take a bit of understanding - but here at SourceBMX we are here to help! The first thing to understand is that BMX frame sizing is best measured by the length of the top tube - shown here as TT. Keep reading on to understand how the angles change how your frame will feel!
